Elipson A680 Multi-Channels Amplifier (3 Zones / 6 Channels X 80W) (Per Piece)

High Audio Performances with Large Power, Elegant Design, and Perfect Versatility

• 6 channels – 3 in stereo Class D (Total power of 480 W @ 4 Ohms)
• 3 Zones
• 2 Bus inputs
• 2 Bus outputs to connect additional A680 multichannel amplifiers
• Perfect flexibility for audio signal input: Switch for common audio signal (Bus) or individual stereo channel (Line) for each zone
• 6 Individual adjustments for voltage input
• Trigger mode / Auto mode / Automatic Standby mode
• Stereo / Bridge mode (up to 3 x 150 W @ 8 Ohms)

Technical Specifications

• Type: Multi-zone power amplifier
• Channels: 6 channels, 3 zones
• Power output: 80 W per channel @ 4 Ohms
• Bridged power output: 150 W per channel @ 8 Ohms
• Total harmonic distortion (THD): <1% @ 1 kHz / 80 W / 4 Ohms
• Channel separation: > 65 dB @ 1 kHz / 4 Ohms Zone-Zone
• Signal-to-noise ratio: > 90 dB (A weighted, Ref: 19 V)
• Frequency range: 20 Hz - 20 kHz (+/- 3 dB)
• Trigger: 12V IN & OUT
• Damping factor: > 55 @ 1 kHz
• Input impedance: > 20 k Ohms
• Voltage input: AC 100-120 V 60 Hz / AC 220-240 V 50 Hz auto-switching
• Safety: CE, CB, NRT, FCC, CE-EMC, ERP

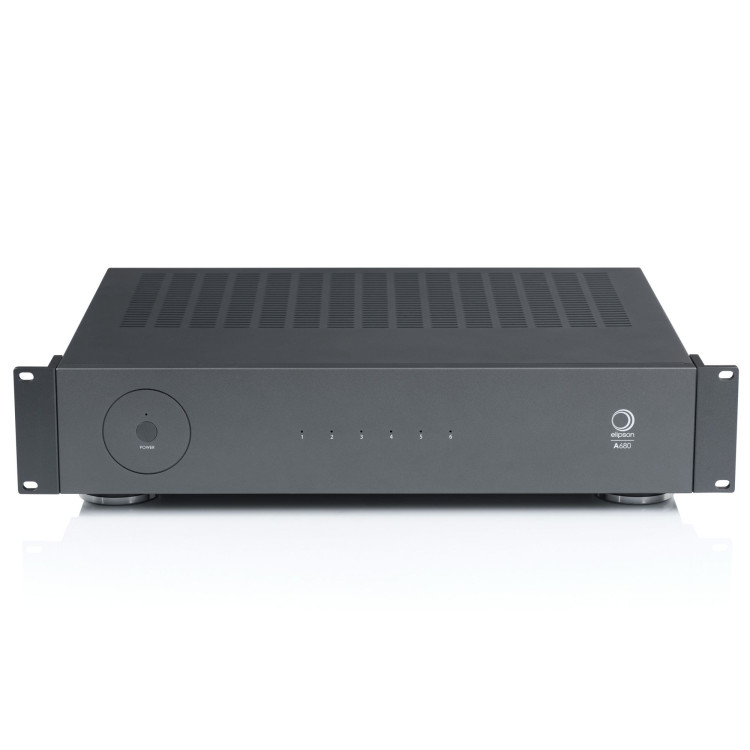

• Accessory: Supplied with mounting brackets for Audio/Video racks (2U thickness)

Dimensions & Weight

• Dimensions: W430 x H88* x D335 mm (*without feet)
• Net weight: 9.5 kg

Packaging

• Inner box dimensions: W545 x H120 x D418 mm
• Outer box dimensions: W560 x H433 x D210 mm
• Gross weight: 11.7 kg
