Biamp MA120 (70 - 100 volt) 120W mixing amplifier

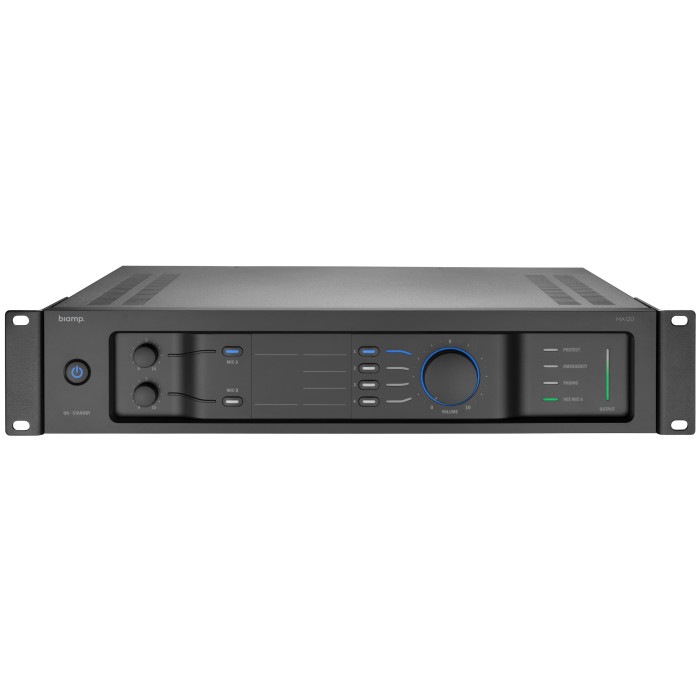

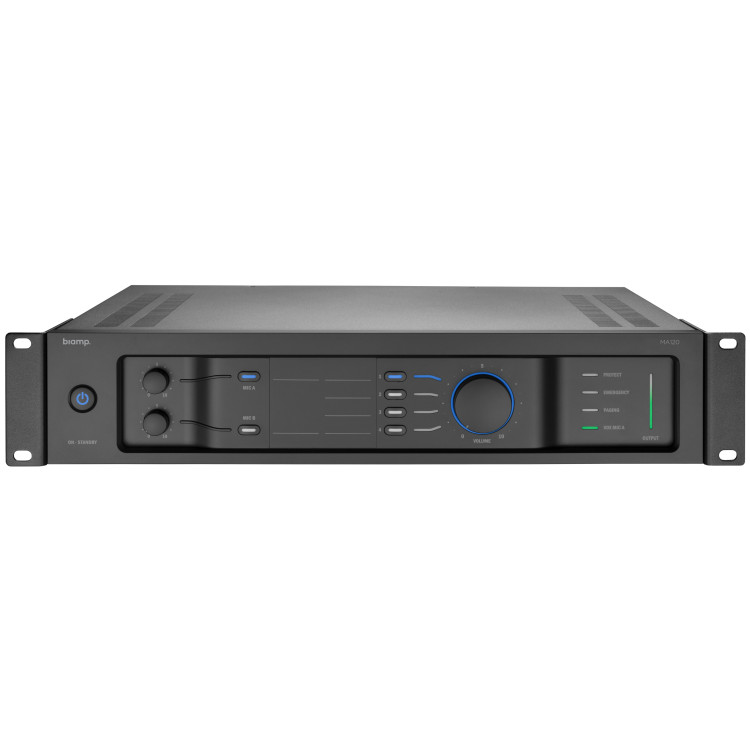

The revolutionary MA120 mixing amplifier offers the enduser an unseen cutting-edge design and ease-of-use. The ground-breaking intuitive front panel is clear and easy to use without any unnecessary bells and whistles. The volume control rotary on the front panel is prominent, illuminated, bigger and put in the forefront while the mic volume control is smaller and recessed.

This class-d mixing power amplifier offers 120 watts in 70 or 100 volt mode and comes with three mic inputs balanced, along with four stereo line, mono summed inputs.

The MA120 is a 120W single channel mixing amplifier. Designed for ease of use, the front panel of the MA120 includes volume and microphone controls, providing immediate visual feedback regarding system operation. The MA120 is equipped with four priority levels for audio routing: one emergency input, one paging input, two mic/line inputs, and four stereo line, mono summed inputs. It’s audio performance, easeof-use, and versatile feature set makes the MA120 ideal for a variety of professional audio applications.

FEATURES

• Single channel; 120 watts of continuous power
• Supports 4Ω and 70V/100V outputs
• Class D amplifier topology

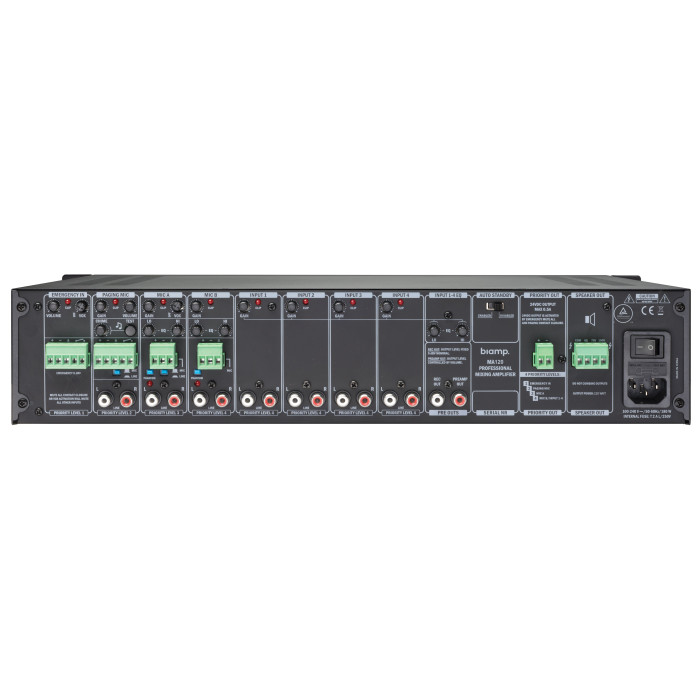

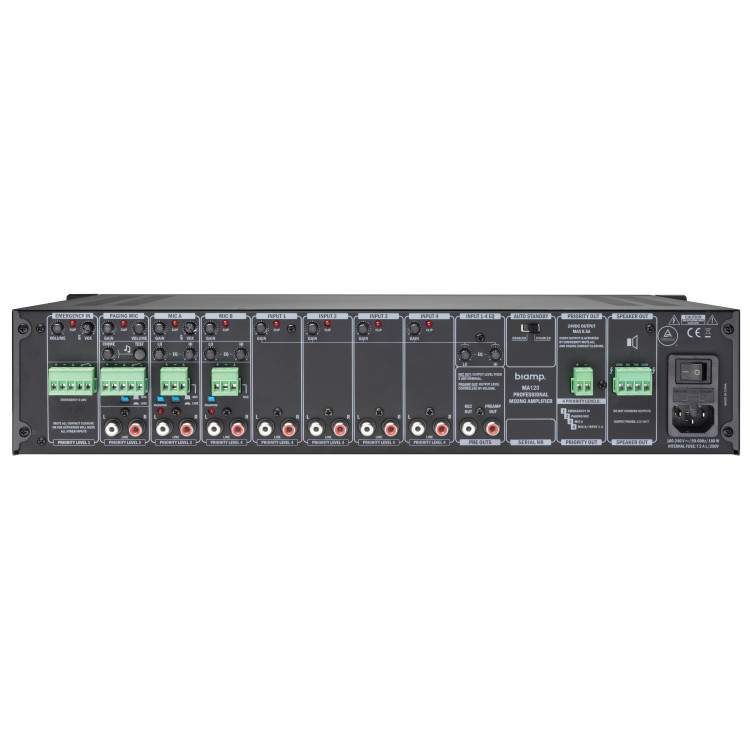

• Intuitive front and rear panels
• Four priority levels for audio routing
• 24V priority output overrides local volume controls
• Dedicated emergency input with mute all switch
• Paging mic input with contact closure and chime
• Two mic/line level inputs with 48V phantom power
• Four stereo inputs
• Fanless operation
• Internal universal power supply
• Auto standby mode
• Rack mountable (2RU)
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty
