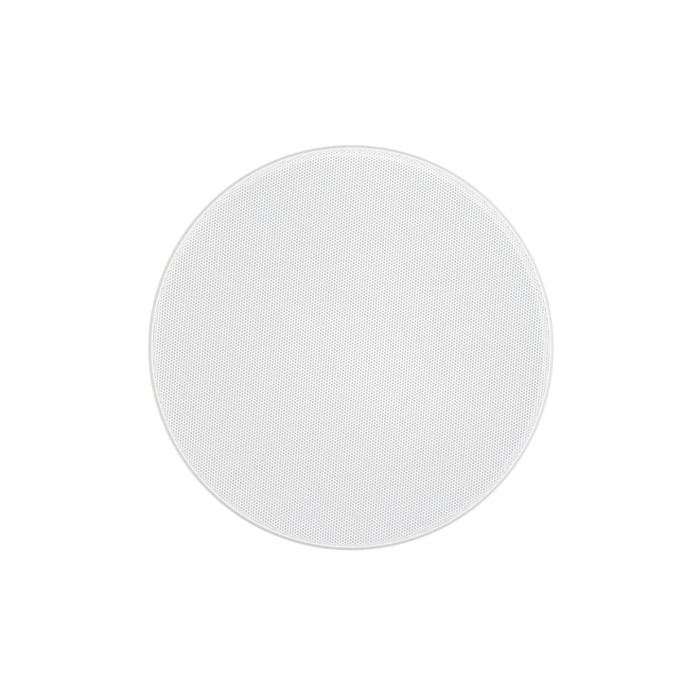

Monitor Audio C280-IDC with Round Grill (Per Piece)
- Delivery Time: Discontinued!
- Hi-Fi+ Code: 34100887

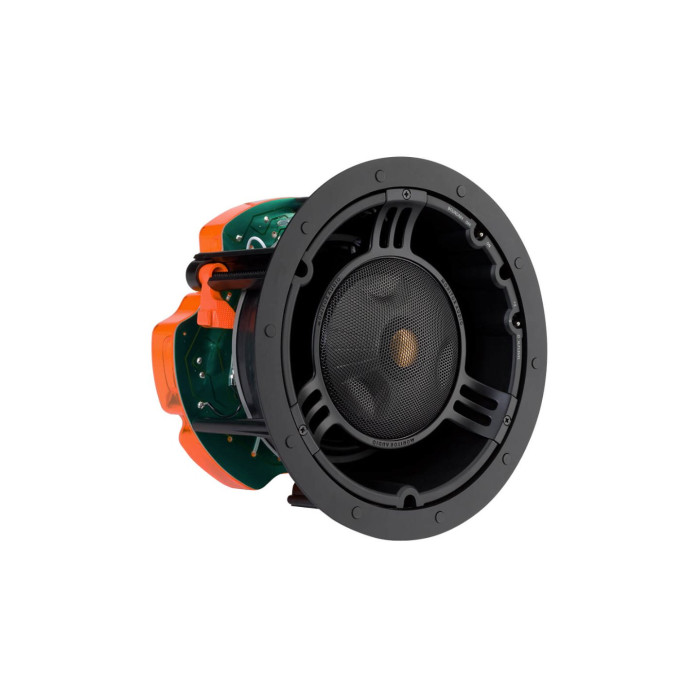

Features an 8-inch C-CAM bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.
True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation. Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.
Optional square grille can be used with this model.
SPECIFICATIONS
Frequency Response
50 Hz – 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
111.6 dBA
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
30 – 120 W
Drive Unit Complement
8” C-CAM cone bass driver, pivoting IDC module housing:
4” C-CAM RST inverted mid range driver
1” C-CAM Gold Dome tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille)
285 mm (111/4")
Overall Depth (Including Grille)
161 mm (65/16")
Mounting Depth
157 mm (63/16")
Cut-Out Hole Diameter
247 mm (93/4")
Optional Square Grille - Outer Dimensions
285 x 285 mm (111/4")
Fixing Type
3 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
3.42 kg (7 lb 8 oz)
Back Box
CMBOX-R
Sold As
Single Unit
