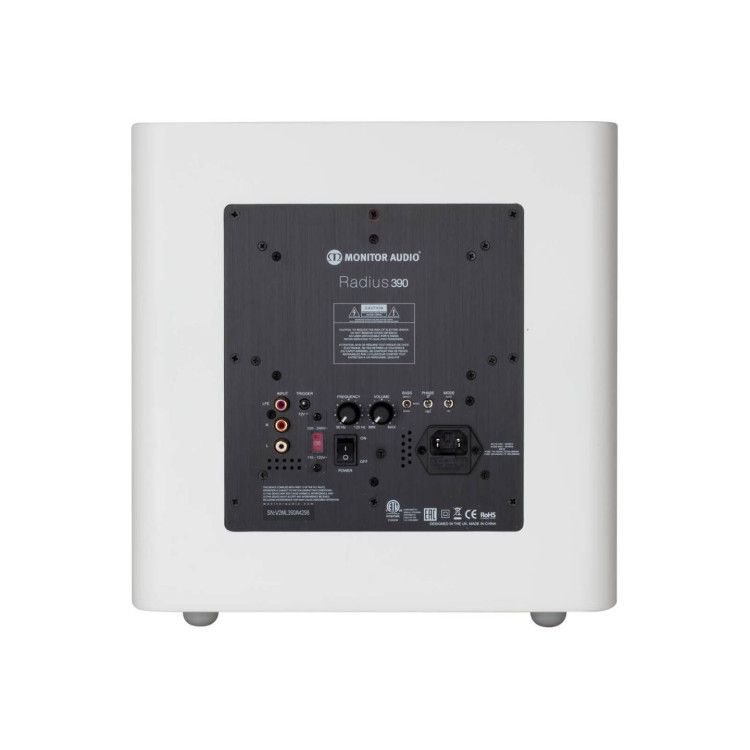

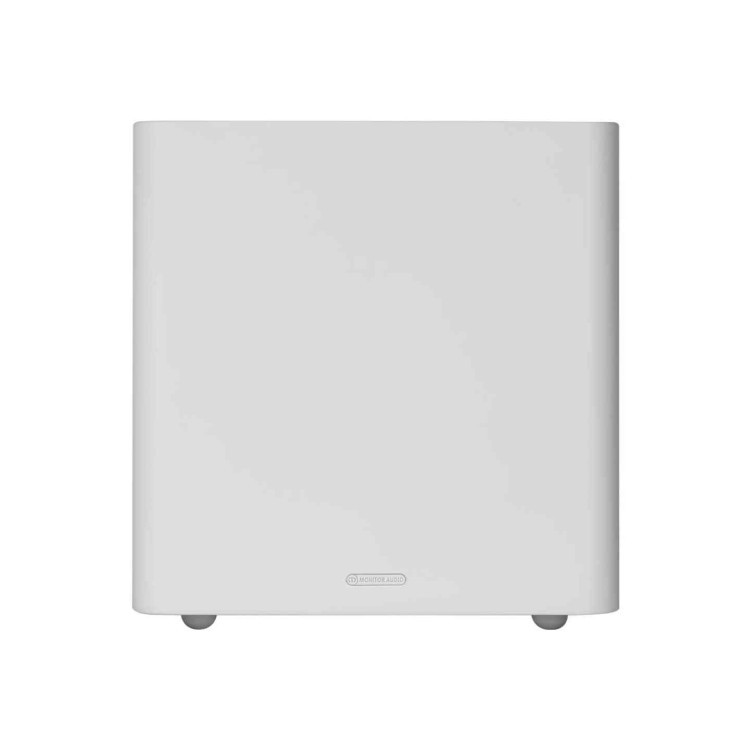

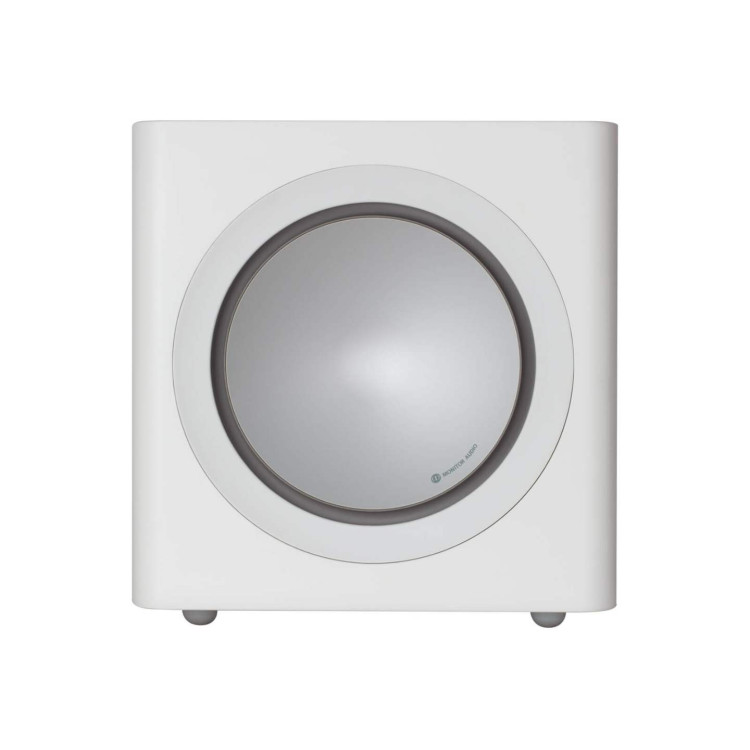

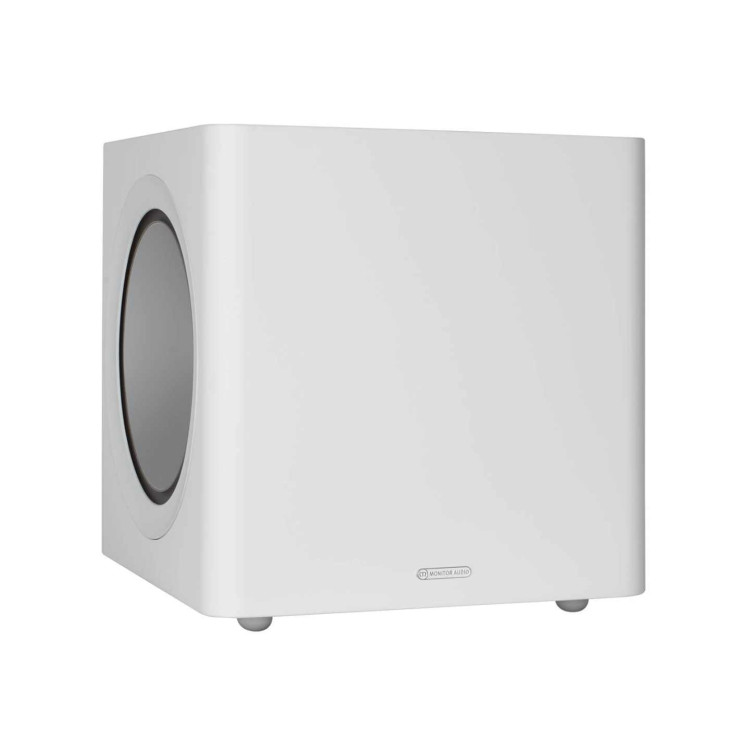

Monitor Audio Radius 390 - White Satin

Delivery Time: Discontinued!
Hi-Fi+ Code: 34100910

Reviews (0) | Write a review

€ 0,00

Ex Tax: € 0,00

Qty

Add to Cart

Add to Wishlist Compare this Product

The Radius 390 comprises of colour-coded 10" C-CAM active/ABR drivers, powered by a 200 W Class D amplifier. Enjoy rapid EQ optimisation from Impact, Music and Movie settings, and system automation via the 12 V trigger.

Technology

18 mm MDF cabinet construction with internal bracing
Cool-running 200 W Class D amplifier with switch mode power supply (SMPSU)
Twin side-firing 10" C-CAM drivers - one active and one passive ABR
Low pass filter switch – for LFE or Stereo input selection
Power switch with ON – Auto- Off/ trigger settings
Stereo/ LFE RCA inputs
3 x Pre-set EQ settings – Music/Movie/Impact

SPECIFICATIONS

System Format

Active sub-woofer system – Auxiliary (ABR) loading. 18 mm MDF cabinet

Lower Frequency Limit

30 Hz (- 6 dB)

Upper Frequency Limit

Variable 40 – 120 Hz @ 24 dB/Octave

Amplifier Output

200 W @ 1% THD+N

Amplifier Classification

Class D amplifier with Switch mode power supply (SMPSU)

Bass EQ Profiles

Music / Movie / Impact

Phase Control

0 & 180 degrees

Auto Sensing

Line Level >3.5mV

Input Level Requirements

Standby after approximately 15 minutes if no signal sensed

Drive Unit Complement

1 x 10" (250 mm) C-CAM long throw driver 1 x 10" (250 mm) ABR

Input Impedance

> 20 ohms

Mains Input Voltage

AC 110 - 120 V ~ 50/60Hz; AC 220 - 240 V ~ 50/60Hz (Factory Region Preset)

Dimensions (Including Amp and Feet (H x W x D))

348 x 330 x 345 mm (13^11/16x 13 x 12^9/16")

Connection

Stereo RCA in, LFE in, 12v Trigger in (3.5 mm mono mini-jack)

Trigger Input

5 - 12v via 3.5mm mono mini-jack socket

Power Consumption

200 W / 0.5 W in Standby (ErP approved)

Weight (unpacked)

13.76 kg (30 lb 4 oz)

Sold As

Single Unit
