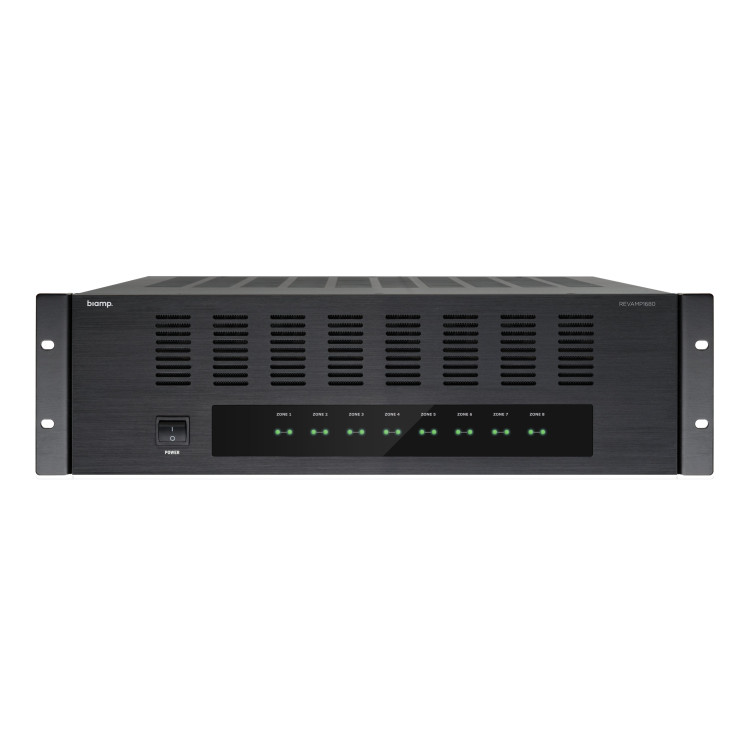

Biamp REVAMP1680 - 16 channel class D amplifier 16 x 80 watts @ 4 ohms

REVAMP1680 is a professional 16-channel digital power amplifier with 16 x 100 watts output power @ 4 ohms, but the unit is also bridgeable to 8 x 200 watts @ 8 ohms. This 3-rack unit high amplifier with very high channel separation also has a dual analog power supply with toroidal power transformers. The standby power consumption is very low, less than 0.5 watts.

Another smart feature of the REVAMP1680 is the switching mode standby power supply with multiple auto power on/off options. You can power on or power off the unit via a trigger input. The trigger input is ideal when you want to switch on the power amplifier automatically using an external AC or DC trigger signal coming from your audio system. The amplifier will be switched on as long as the trigger voltage is present. Alternatively, you can set the power on mode switch to the audio trig position: the amp will automatically switch on when a sufficiently strong audio signal is present at the input and automatically switch off after a few minutes of silence.

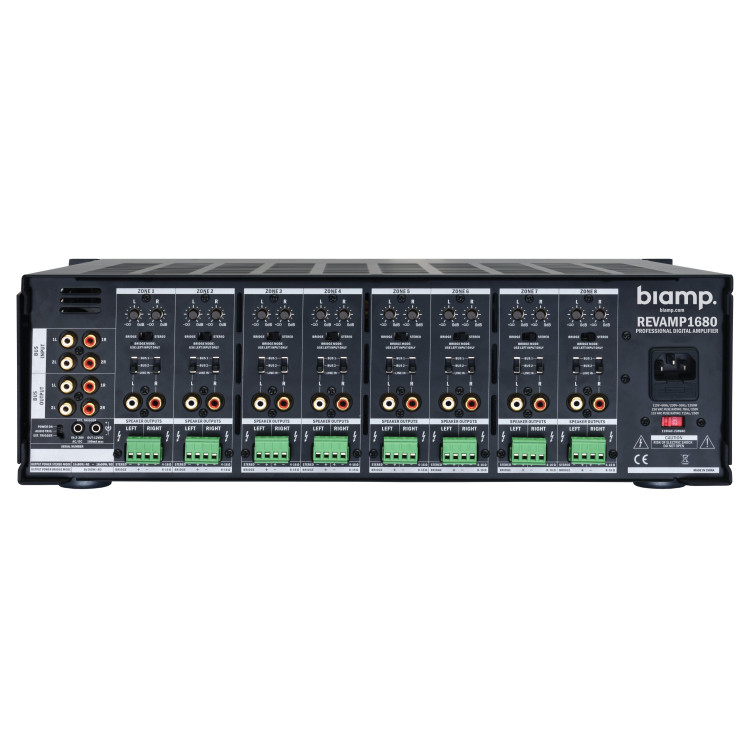

This amplifier is equipped with 2 stereo bus inputs with pass through. These bus inputs are ideal when you want to hear the same audio signal in different output zones with the advantages you need less audio cables and the installation can be done very fast.

SPECIFICATIONS

• dynamic output power 4 ohms in watts: 16 x 100
• dynamic output power 8 ohms in watts: 16 x 60
• dynamic output power bridged 8 ohms in watts:  8 x 200
• minimum impedance load per channel in ohms:  4
• power consumption (max) in watts: 1350
• height- rack units (1U=44 mm) in U: 3
• depth (incl front) in mm: 421
• power supply technology: toroidal transformers
• line input unbalanced: 20
• power amp topology: class-D
• cooling system: convection
• Net weight product (kg): 21.70
• RMS output power 4 ohms in watts: 16 x 80
• RMS output power 8 ohms in watts: 16 x 40
• output power RMS bridged 8 ohms in watts: 8 x 160
• minimum impedance load bridged per channel in ohms: 8
• 19" (483 mm wide) rack mounting:  yes
• depth (build in) in mm: 405
• power supply: 115 - 230 VAC
• output channels: 16
• channel separation: > 68 dB @ 1 kHz
• frequency response (in Hz): 20 - 30 k
• applicable low impedance: yes
