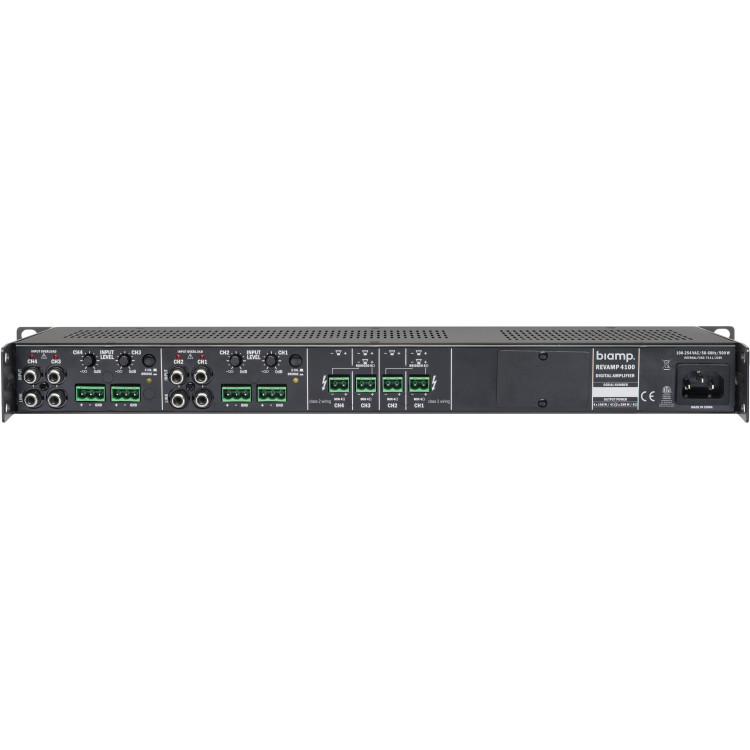

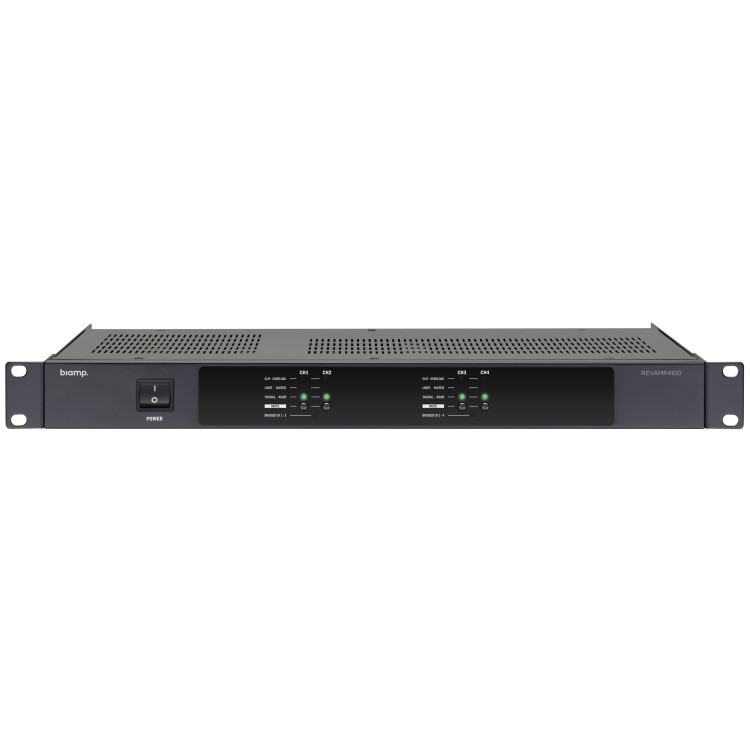

Biamp REVAMP4100 - 4 channel class D amplifier 4 x 100 watts @ 4 ohms

REVAMP4100 is a professional digital 4-channel amplifier with high power Class-D power amplifier modules inside. The unit has extended speaker and amp protection circuits inside for DC protect, over current protect, over temperature protect and protection against input overload.

The REVAMP4100 amplifier has 4 individual amplifier channels but can be bridged into 2 stereo channels.

SPECIFICATIONS

dynamic output power 4 ohms in watts: 4 x 110
dynamic output power 8 ohms in watts: 4 x 55
dynamic output power bridged 8 ohms in watts: 2 x 225
minimum impedance load per channel in ohms: 4
power consumption (max) in watts: 500
height- rack units (1U=44 mm) in U: 1
depth (build in) in mm: 230
power supply: 100 - 254 VAC
output channels: 4
line input unbalanced: 4
power amp topology: class-D
cooling system: convection
applicable low impedance: yes
RMS output power 4 ohms in watts: 4 x 100
RMS output power 8 ohms in watts: 4 x 50
output power RMS bridged 8 ohms in watts: 2 x 200
minimum impedance load bridged per channel in ohms: 8
19" (483 mm wide) rack mounting: yes
height in mm: 44
depth (incl front) in mm: 239
power supply technology: switching mode power supply
line input balanced: 4
channel separation: > 65 dB @ 1 kHz
frequency response (in Hz): 20 - 22 k
applicable in 100V: no
Net weight product (kg): 3.5
