Monitor Audio C1M with round grill (per piece)

This medium Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 212 mm, a revolutionary patented Quik-Link speaker cable connector, and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

Features at a glance:

• Ideal for cost-effective installations
• Two-way design

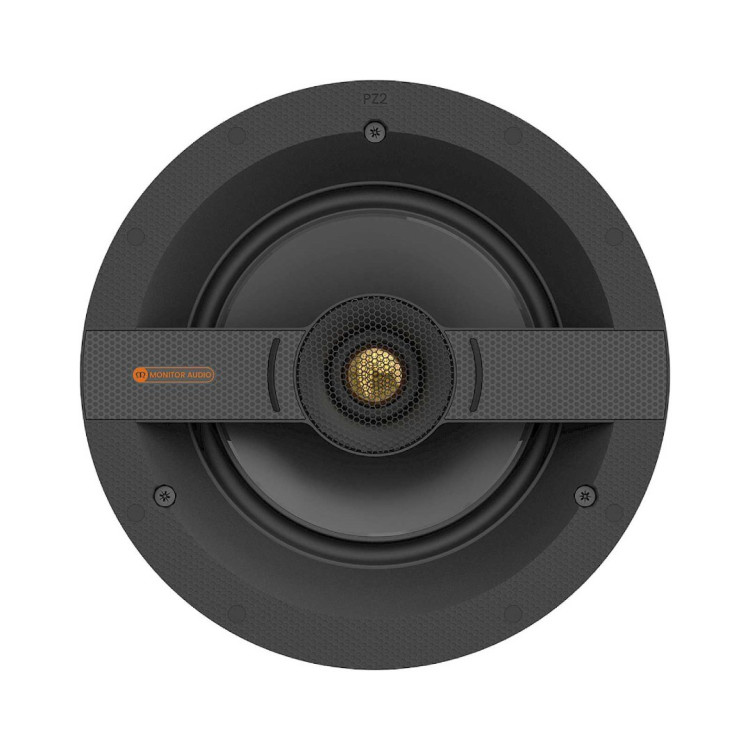

• 1 x 1" C-CAM tweeter with UD Waveguide
• 1 x 7" C-CAM mid-bass driver

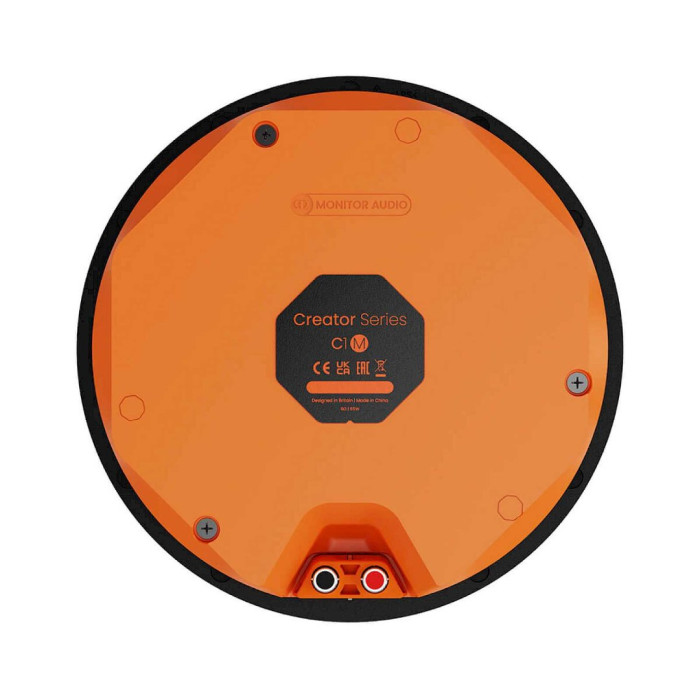

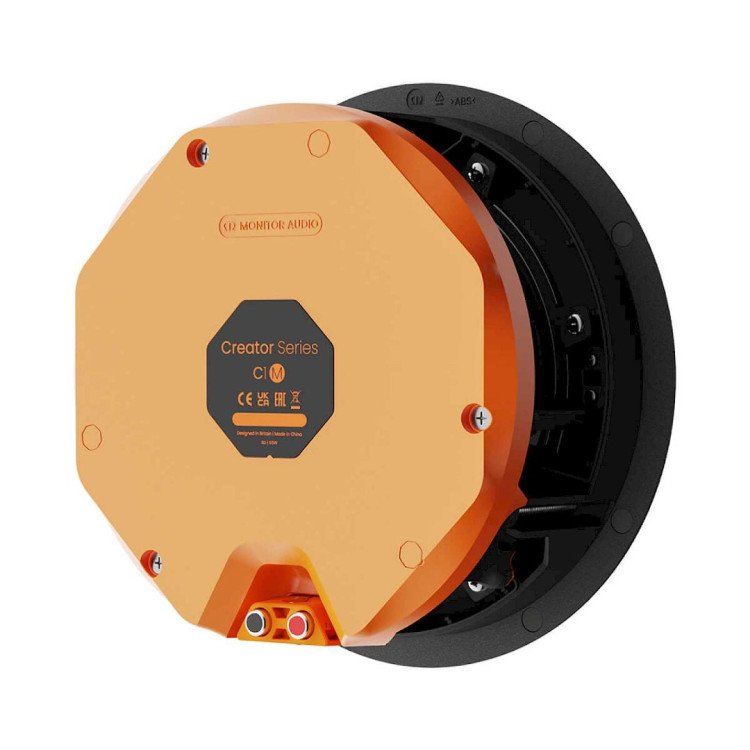

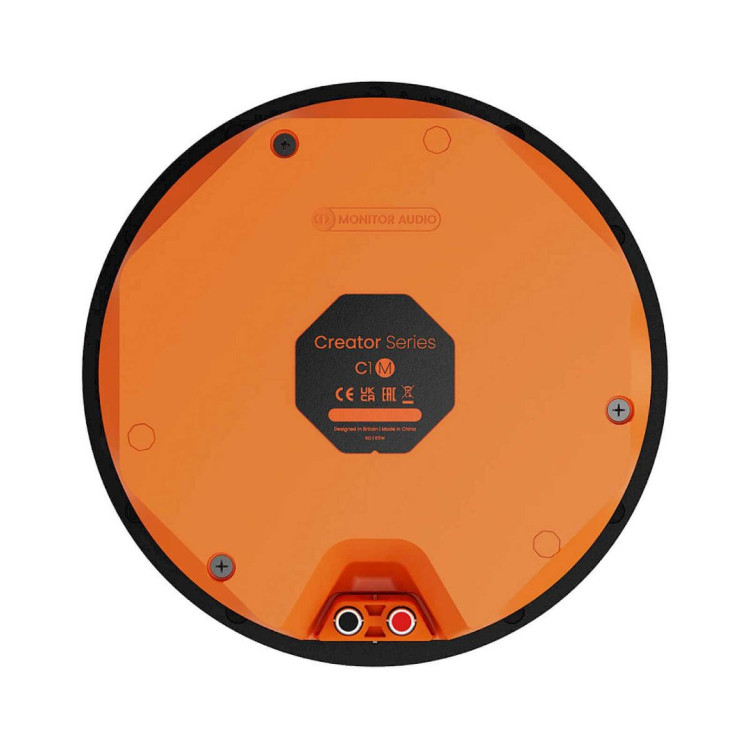

• Patented Quik-Link speaker cable connector for quicker installation

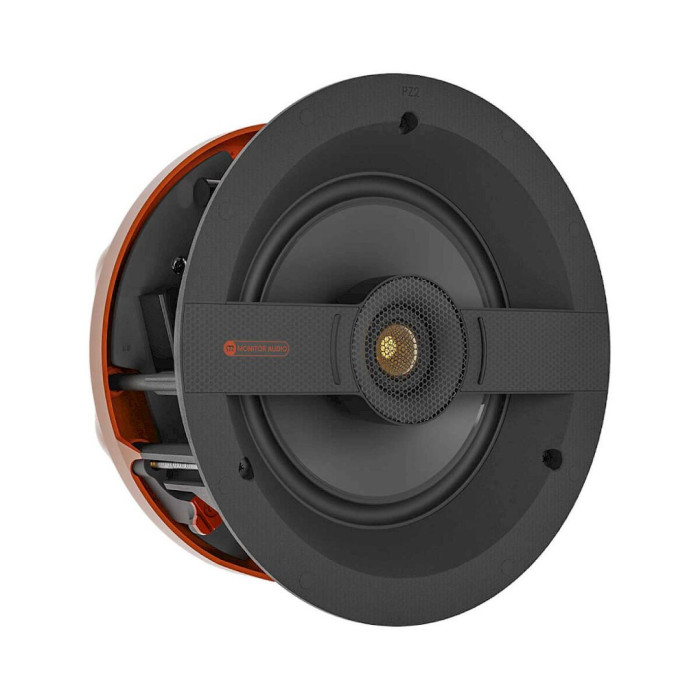

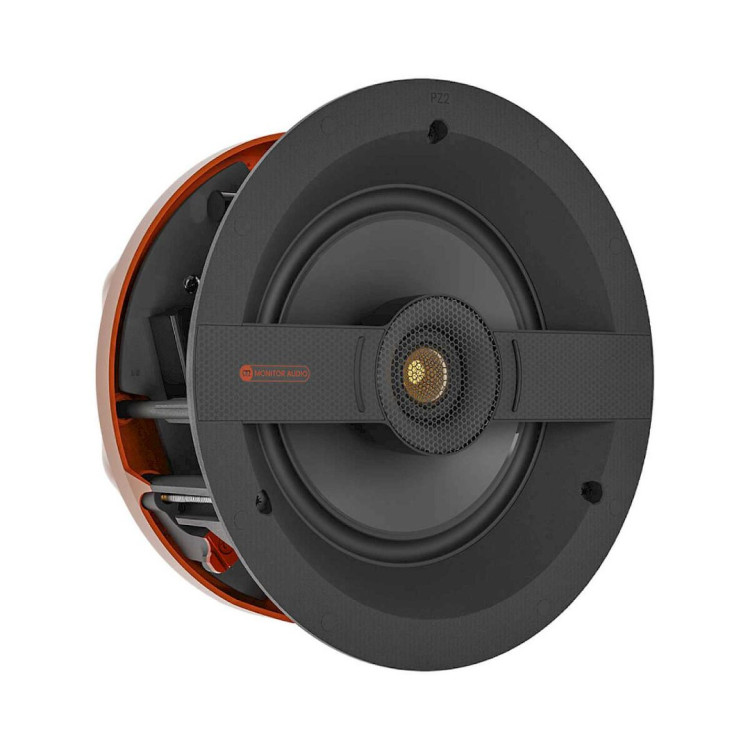

• Tri-Grip II for easy and secure fitment

British High-Fidelity Architectural Sound Redefined

This medium-sized Tier 1 in-ceiling loudspeaker is designed for cost-effective installations where product simplicity and solid acoustic performance are required. It is a two-way model featuring a C-CAM mid-bass driver and a C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear, lifelike, high-fidelity sound—of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 212 mm and uses the patented Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also evolved for simple, reliable, and strong fitment.

SPECIFICATIONS

• System Format: 2–Way
• Channels: 1
• Frequency Response, Installed (-6dB): 35 Hz – 30 kHz​
• Nominal Impedance: 8 ohm
• Minimum Impedance (20Hz to 20kHz): 6.5 Ohm @ 150 Hz
• Sensitivity (2.83Vrms@1m, Installed): 86 dB
• Maximum Peak SPL* (single speaker @ 1m Z-Weighted): 113 dB
• Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 65 W
• Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 35 – 130 W
• Drive Unit Complement:
  • 1 x 7" (178 mm) C-CAM mid-bass driver
  • 1 x 1" (25 mm) C-CAM tweeter
• Crossover Frequency: LF/HF: 2 kHz
• Mounting Depth: 99 mm (37/8")
• Cut-Out Hole Diameter: 212 mm (83/8")
• External Dimensions (Including Grille (H x W x D)): 242 x 242 x 103​ mm (91/2 x 91/2 x 44/16")
• Weight (each): 1.9 kg (4 lb 3 oz)
• Pre-Construction Bracket: CM-B
• Cabinet Finish: Matte black & Orange​
