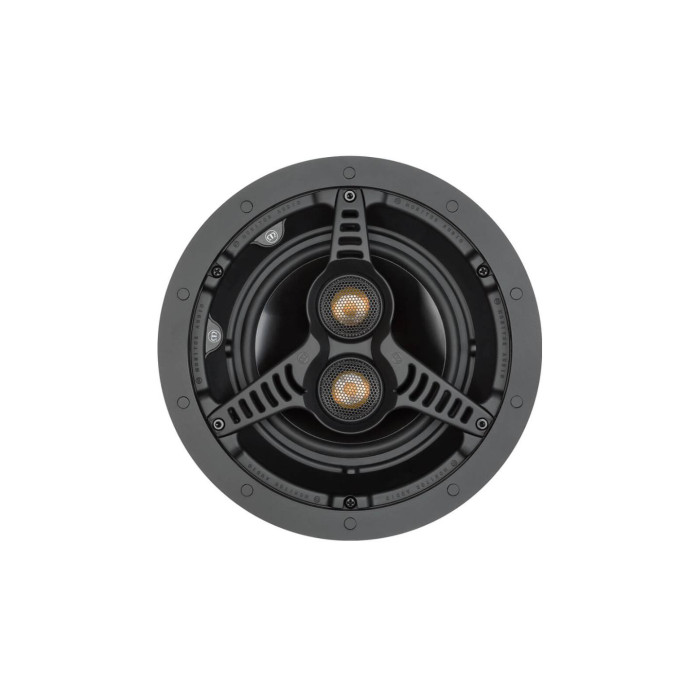

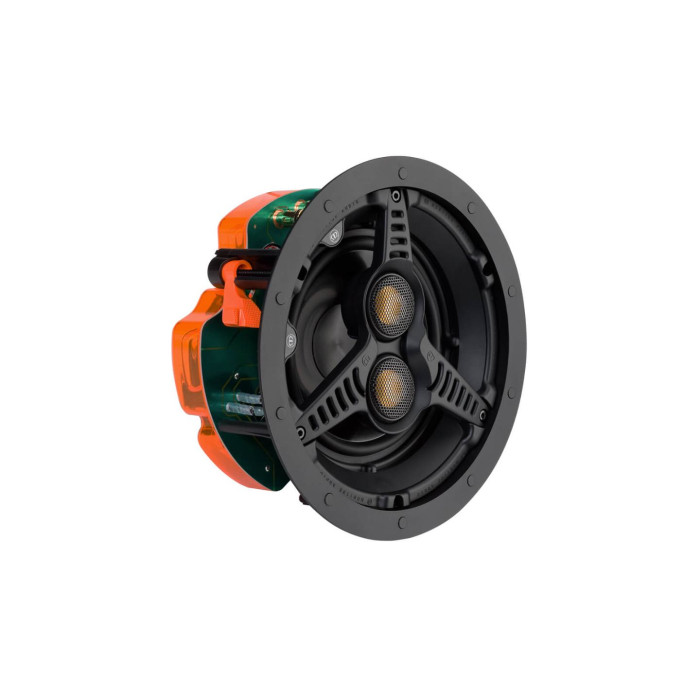

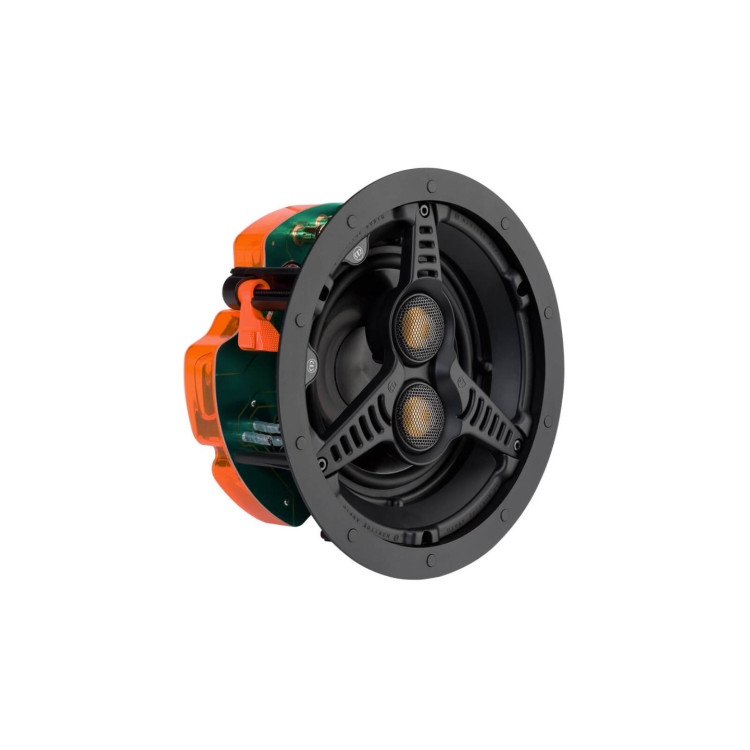

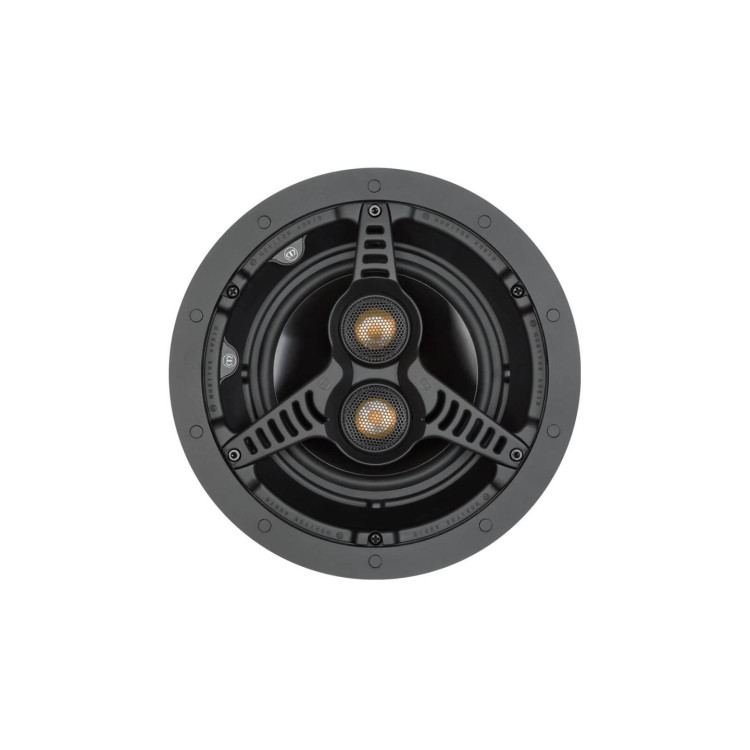

Features dual, independent, pivoting 1-inch C-CAM tweeters and a 6 1/2 inch MMP II dual wound voice coil bass driver, for high performance stereo sound from a single speaker.
Ideal for hallways, or any area where space does not allow for stereo pairs.

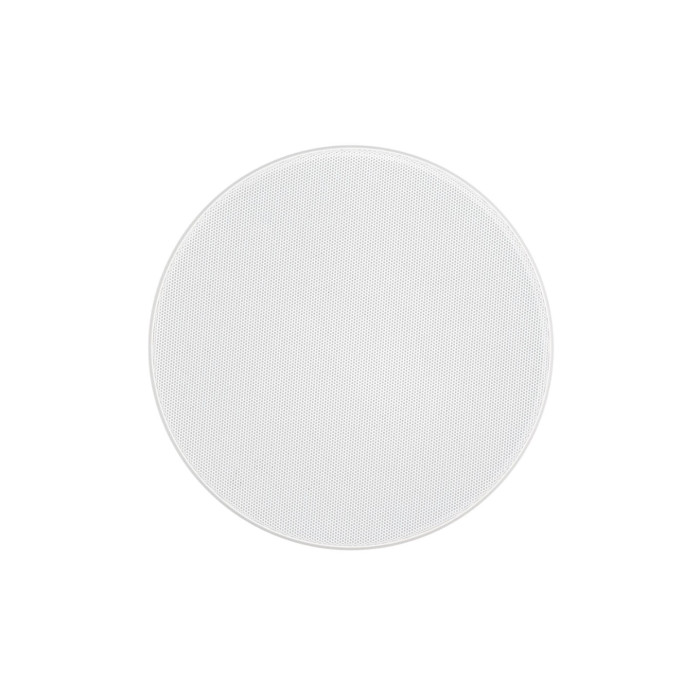

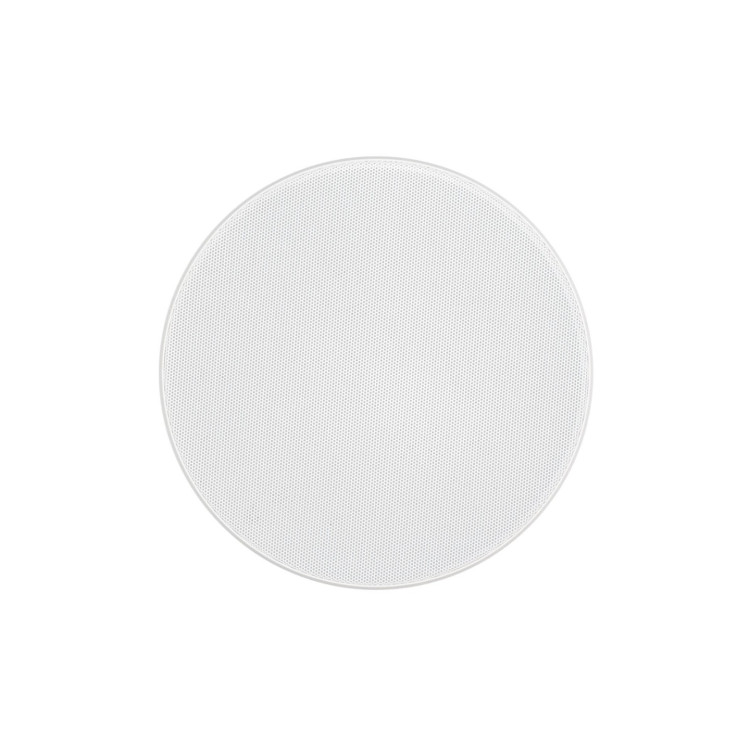

Optional square grille can be used with this model.
SPECIFICATIONS
Frequency Response
60 Hz – 25 kHz
Nominal Impedance
6 + 6 ohms
Sensitivity (1W@1M)
88.5 dB
Recommended Amplifier Requirements
20 – 65 W
Drive Unit Complement
6 1/2" MMP II cone bass driver
2 x 1" C-CAM pivoting Gold Dome tweeters
Overall Diameter (Including Grille)
250 mm (913/16")
Overall Depth (Including Grille)
120 mm (43/4")
Mounting Depth
116 mm (49/16")
Cut-Out Hole Diameter
211 mm (81/4")
Optional Square Grille - Outer Dimensions
249 x 249 mm (9 3/16")
Fixing Type
3 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
2.08 kg (4 lb 10 oz)
Back Box
CCBOX-R | CMBOX-R
