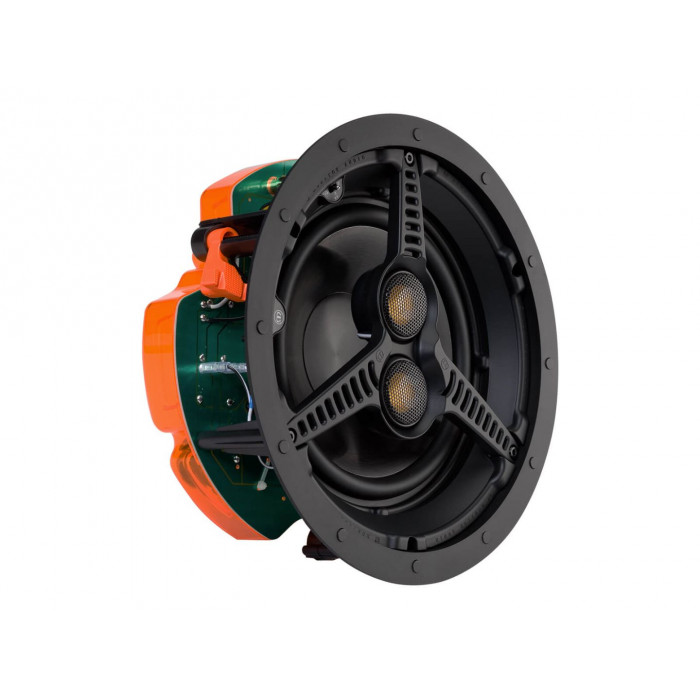

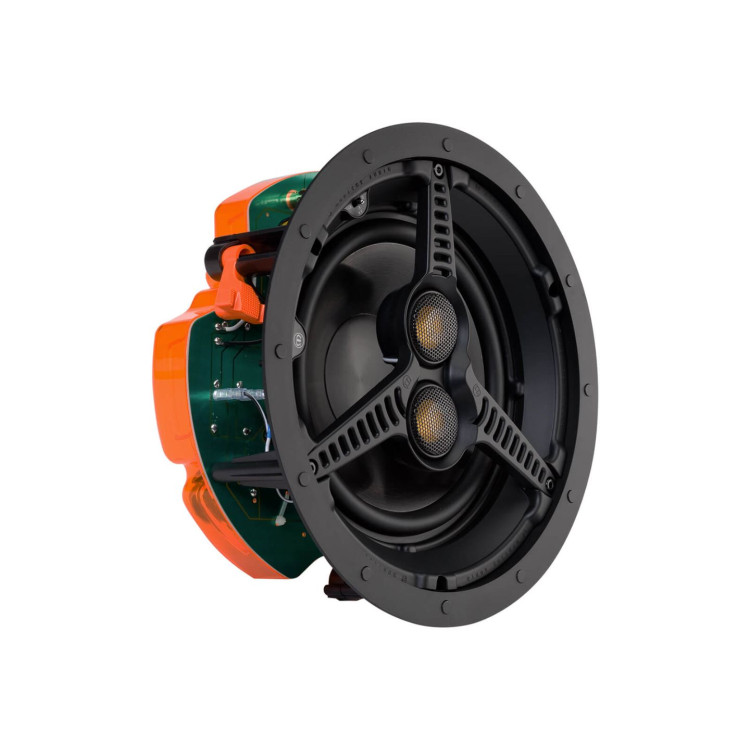

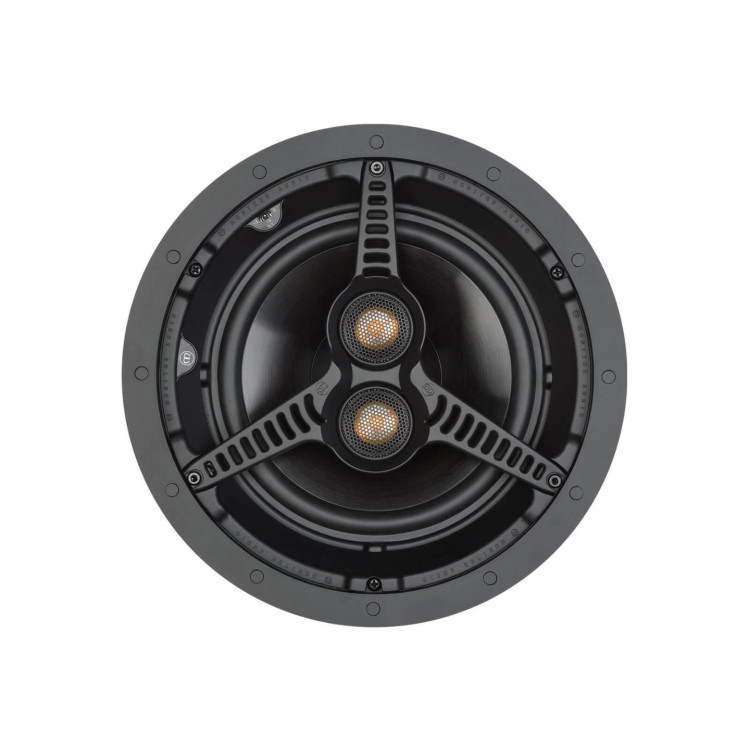

Features dual, independent, pivoting 1-inch C-CAM tweeters and an 8-inch MMP II dual wound voice coil bass driver, for high performance stereo sound from a single speaker.
Ideal for hallways, or any area where space does not allow for stereo pairs.

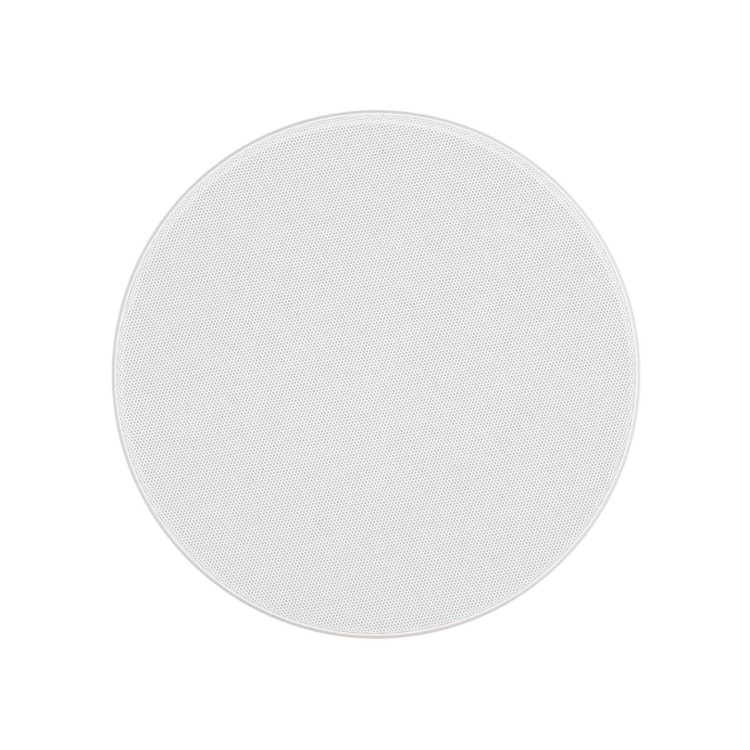

Optional square grille can be used with this model.
SPECIFICATIONS
Frequency Response
50 Hz – 25 kHz
Nominal Impedance
6 + 6 ohms
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
30 – 120 W
Drive Unit Complement
8" MMP II cone bass driver
2 x 1" C-CAM pivoting Gold Dome tweeters
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Diameter (Including Grille)
285 mm (111/4")
Overall Depth (Including Grille)
126 mm (415/16")
Mounting Depth
122 mm (413/16")
Cut-Out Hole Diameter
247 mm (93/4")
Fixing Type
3 position Tri-Grip dog fixings
Optional Square Grille - Outer Dimensions
285 x 285 mm (111/4")
Construction Material
Mineral filled ABS, RoHS compliant
Back Box
CCBOX-R / CMBOX-R
